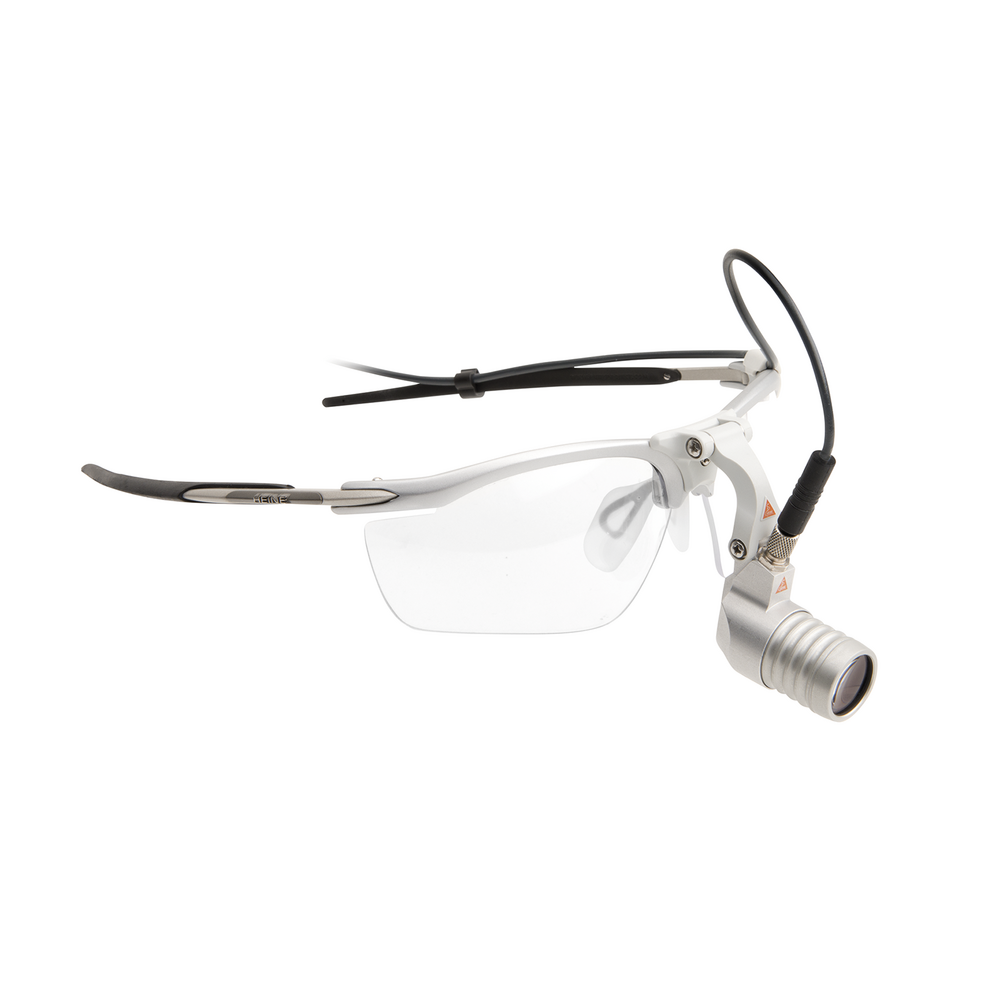

HEINE MicroLight2 LED headlight

Compact and lightweight. Ensures perfect comfort

Aluminium housing. Exclusive aluminium housing protects the optics against dust and moisture to ensure an extraordinary long lifespan and optimal thermal management

Coaxial illumination. Compact coaxial design ensures a completely shadowfree image and allows for excellent illumination of difficult to see areas

Homogeneity. An absolutely bright light spot that is uniform from edge-toedge for the perfect illumination in all examination situations

Replaceable connecting cord with high-quality splashproof threaded connector with a length of 1.5 m. Connects the MicroLight2 with the mPack mini

Incl. coloured attachment clips for personalisation. To fixate the cable on the S-FRAME and to identify your headlight

Technical specification MicroLight2

• Illumination approx. 55,000 lux*
• Colour temperature approx. 4,000 kelvin
• LED operating life approx. 50,000 hours
• Weight: 80 g together with S-FRAME, 190 g together with lightweight headband
• Angle of declination: stepless and individually adjustable for every examination
• Operating time approx. 9 h with mPack mini (in continuous Operation at full power approx. 4 hours)

* Measured at a working distance of 180 mm from the light emission to the object.

Precision multiple lens optical system consisting of four high-quality lenses.

Completely homogeneous illumination of the whole field of view and a clearly defined light spot

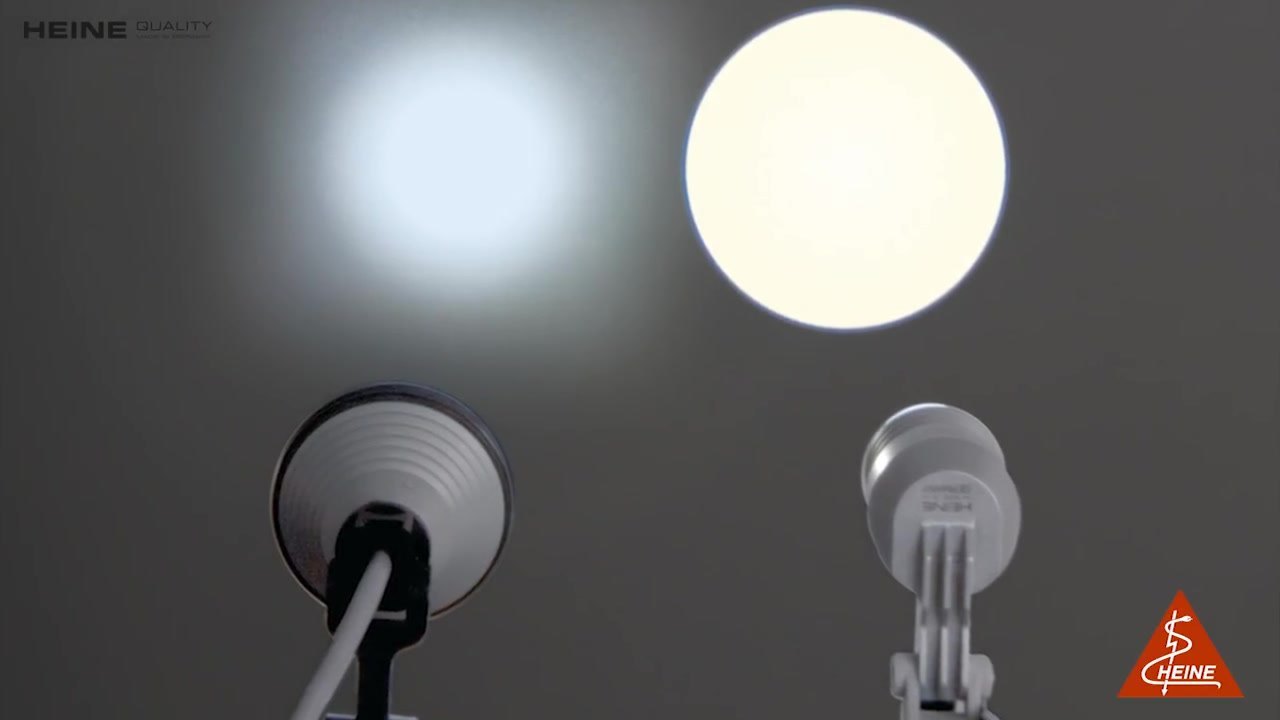

Picture: Conventional system against HEINE precision 4-lens system

HEINE MicroLight2 Mounting options

HEINE S-FRAME

• Maximum comfort with a modern, ergonomic design
• Malleable temples and nose pad. Can be customized to fit any face perfectly
• Innovative materials: Carbon-Kynetium reduces weight (80 g together with MicroLight2)
• Tough polycarbonate protective lenses

HEINE LIGHTWEIGHT HEADBAND

• Lightweight (190 g together with MicroLight2). Ideal for spectacle wearers
• Fully-adjustable for width to fit any head
• Hygienic and comfortable leather cushions
