LoupeLight2 LED

HEINE LoupeLight2 LED headlight

Compact, lightweight (50 g). Ensures perfect comfort

Aluminium housing. Exclusive aluminium housing protects the optics against dust and moisture to ensure an extraordinary long lifespan and optimal thermal management

Coaxial illumination. Compact coaxial design ensures a completely shadowfree image and allows for excellent illumination of difficult to see areas

Optional filter. Polarisation filter P2 improves contrast and yellow filter reduces blue light

Replaceable connecting cord with high-quality splashproof threaded connector with a length of 1.5 m. Connects the LoupeLight2 with the mPack mini

Incl. coloured attachment clips for personalisation. To fixate the cable and to identify your LoupeLight

Technical specification LoupeLight2

• Illumination approx. 55,000 lux*
• Colour temperature approx. 4,000 kelvin
• LED operating life approx. 50,000 hours
• Spot size: the illuminated field is designed to complement the HR | HRP loupes. 81 mm Ø at 420 mm, 95 mm Ø at 520 mm working distance
• Angle of declination: stepless and individually adjustable for every examination
• Operating time approx. 9 h with mPack mini (in continuous Operation at full power approx. 4 hours)

* Measured at a working distance of 180 mm from the light emission to the object.

Precision multiple lens optical system consisting of four high-quality lenses.

Completely homogeneous illumination of the whole field of view and a clearly defined light spot

Picture: Conventional system against HEINE precision 4-lens system

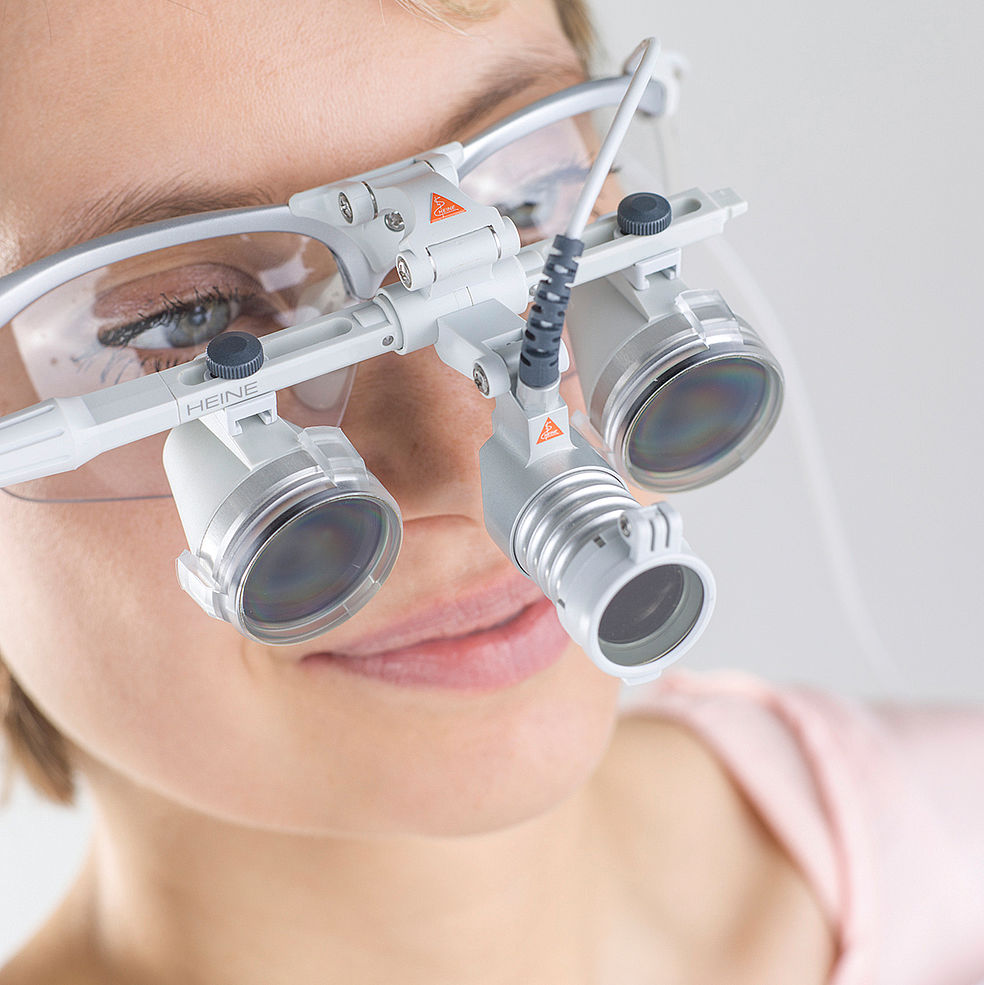

HEINE LoupeLight2 LED with Polarisation Filters
