  BETA X Ophthalmoscope

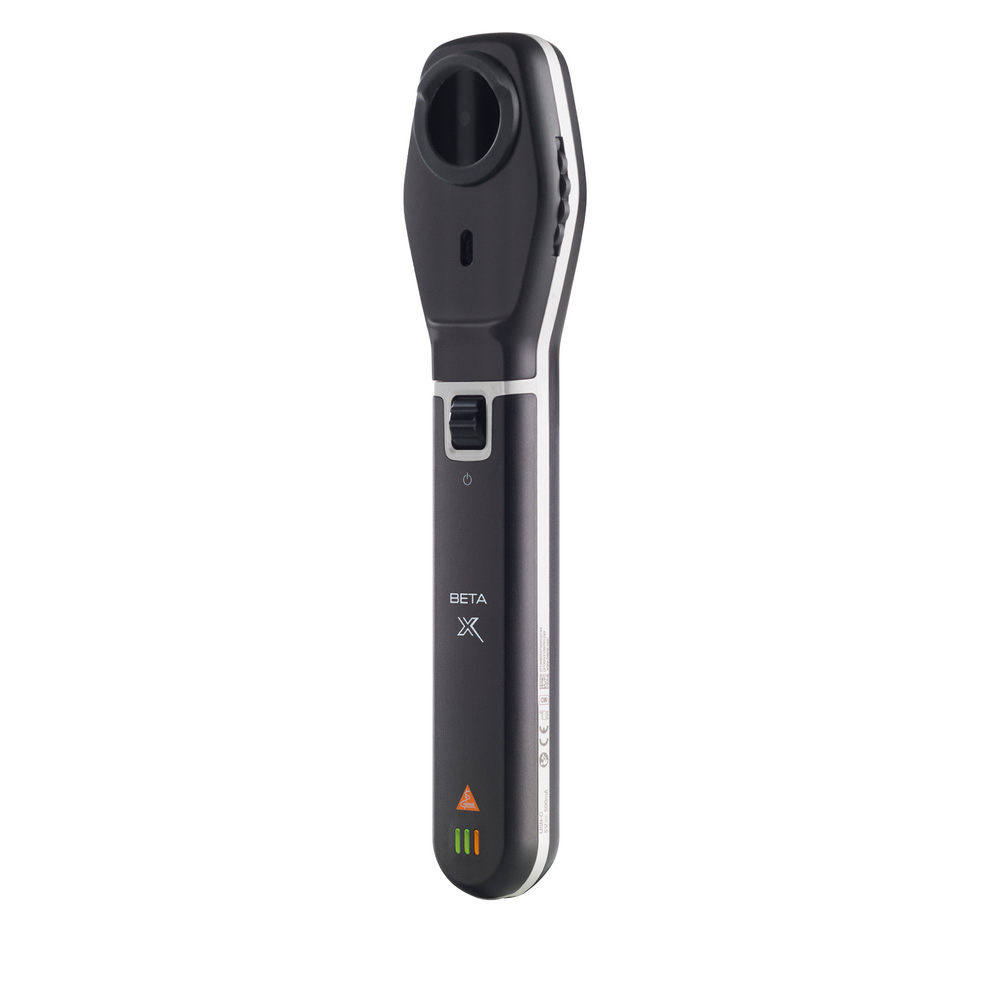

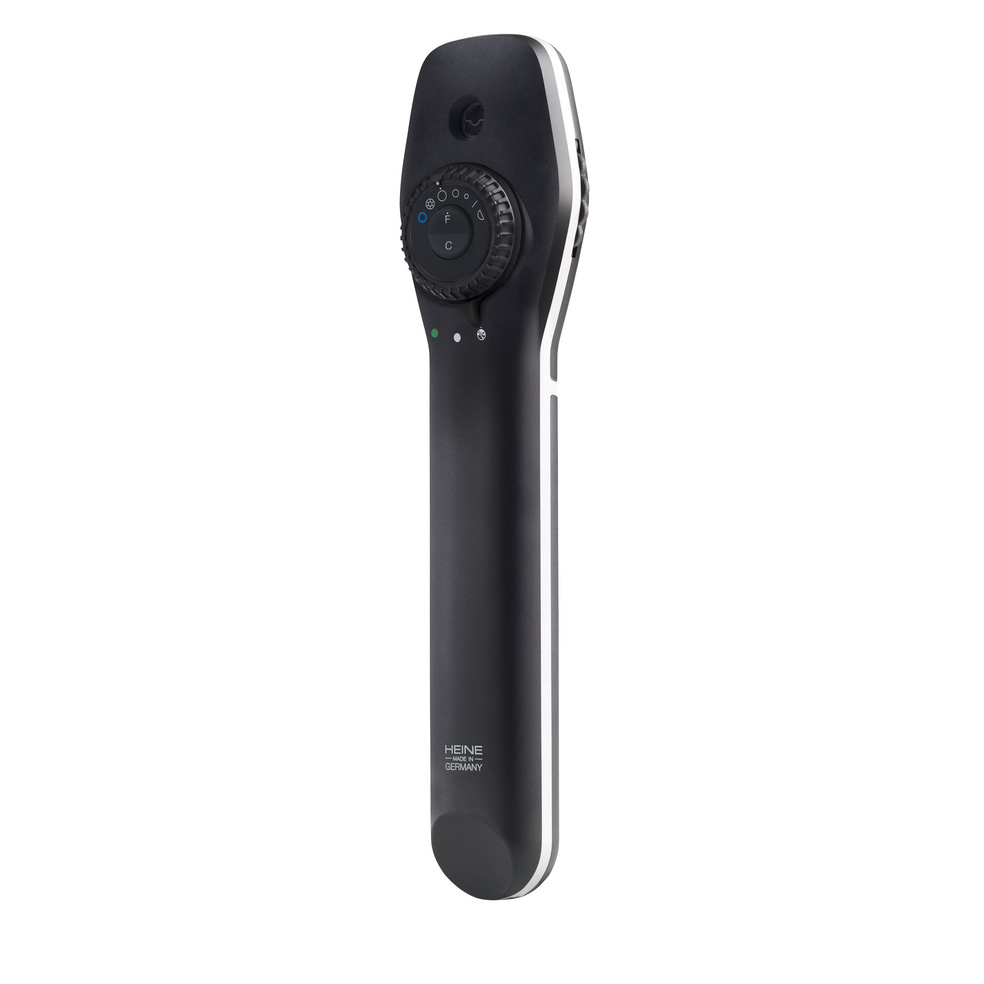

  HEINE BETA X Ophthalmoscope

  Crisp, clear views of the fundus with the AOS+ optical system and LEDHQ

  • The AOS+ Aspherical Optical System is even more effective in reducing corneal and iris reflections through the optimised separation of illumination and observation paths
  • Fewer reflections on the iris thanks to the crescent-shaped illumination: Particularly relevant for children and small pupils or non-dilated patients’ examination
  • The U-shaped mirror enables an even more comprehensive view of the fundus without vignetting effect
  • LEDHQ for homogeneous, bright illumination with true colour rendering for high contrast and extremely detailed views
  • Superior refractive error compensation – select the precise focus adjustment in 74 single dioptre steps from -36D to +38D
  • Ideal instrument for the red reflex test (Brückner test) and eye examination of children, elderly or immobile patients

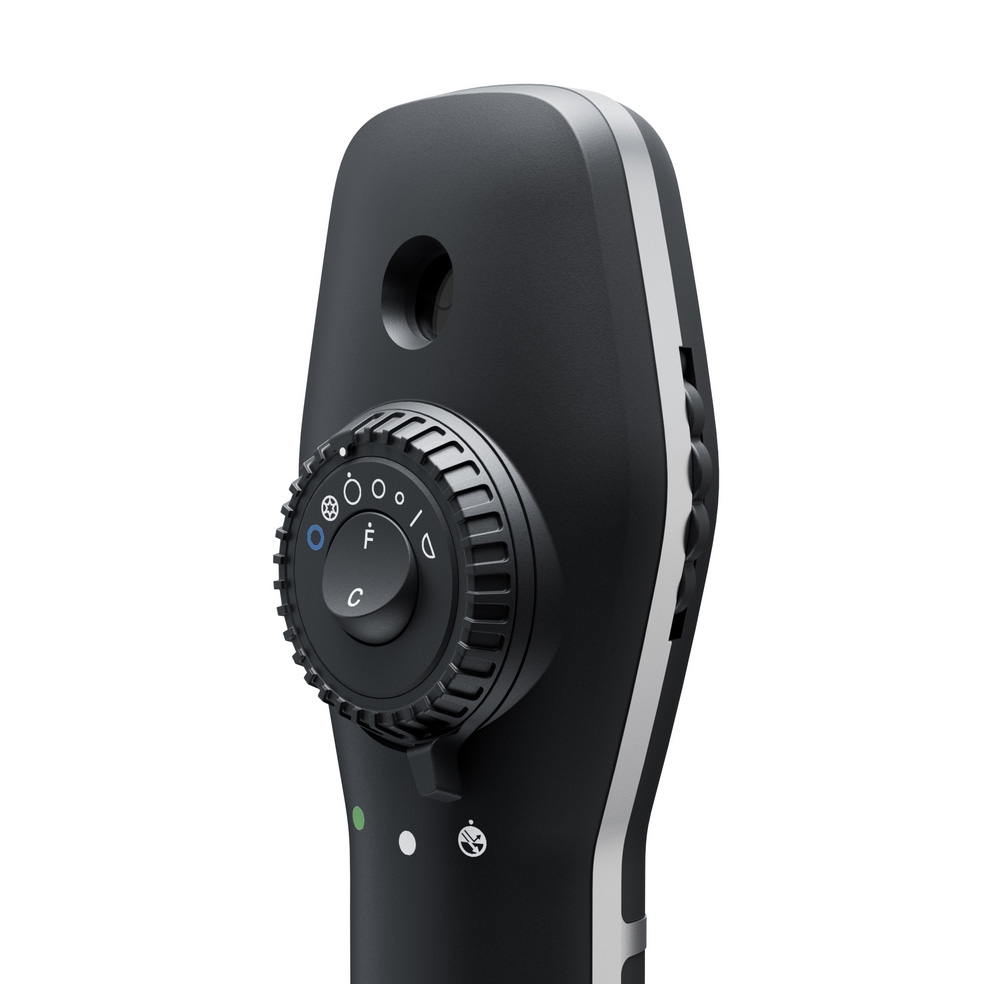

  Exclusive: HEINE focusCONTROL

  • Easily switch focus between the anterior (C: cornea) and posterior segment (F: fundus) of the eye
  • Enables optimised sharp and bright image of the different ophthalmoscope apertures on the anterior segment or the fundus
  • Excellent examination of the anterior ocular media possible under magnification and using slit illumination, for example corneal examination after foreign body exposure and trauma
  • Simplified detection of erosions and oedematous areas
  • Improved assessment of the anterior segment of the eye, including the iris and the lens

  Swivel-in polarisation filter

  • Depending on examination requirements and purpose:
  • With polarisation: Corneal reflexes and stray light reduction
  • Without polarisation: Wall reflex (macular reflex) and retinal arteriolar light reflex (copper & silver wiring) clearly visible

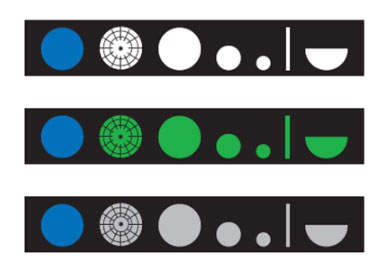

  • 7 different apertures, including pinhole and hemispot, that can also be used with red-free and polarisation filter



  Durable, lightweight and ergonomic design

  • Solid, integrated aluminium frame in which optical components are embedded
  • Optical system is sealed to guard against dust
  • Housing is thermo-moulded out of a special high-impact material blend optimised for hygienic reprocessing
  • smoothSURFACE and recessed USB-C connection
  • Scratch-resistant viewing window made of tempered glass
  • Lightweight and precisely balanced for excellent ergonomics and secure handling
  • 5 years guarantee

  Microprocessor controlled smart illumination control wheel

  • Simple, one-thumb operation
  • Turn wheel quickly for large changes in illumination intensity
  • Turn wheel slowly for precise fine tuning of illumination intensity
  • Continuous dimmability between 1 and 100%
  • Push wheel for on/off
  • Always turns on to the last used illumination intensity setting

  Smart power source options

  • Charge status indicator
  • Automatic switch-off function

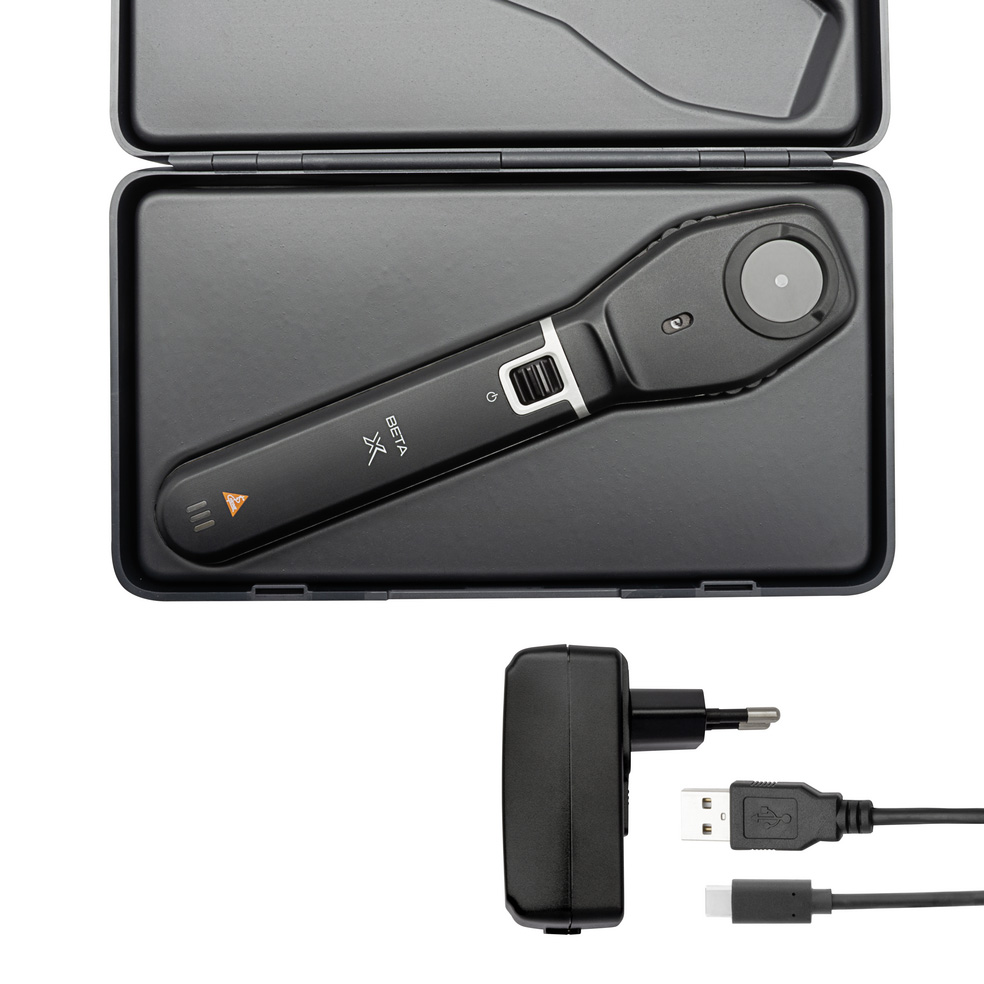

  • Rechargeable with USB-C or charging station









  Complete your diagnostic set with the

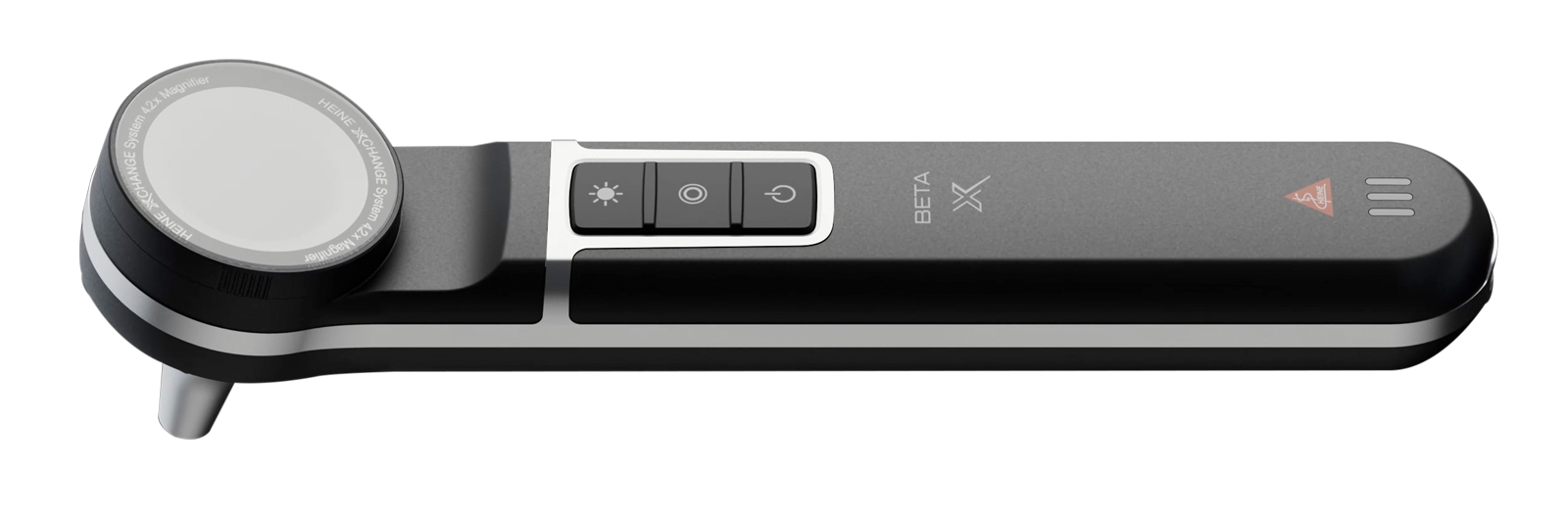

  HEINE BETA X Otoscope

•

  BETA 200S LED...

  HEINE BETA 200S LED Ophthalmoscope

  Ophthalmoscope with outstanding durability – perfect for small pupils

  Accurate diagnosis at first glance. Direct ophthalmoscope with special optical system that provides a particularly clear and bright image of the fundus. Sturdy and handy – ideal for mobile use. 7 different apertures – always the right setting for different examination situations. Particularly bright and dimmable due to LEDH-Q with virtually unlimited working life – no need to ever exchange the LED.

  1. Reliable diagnosis

  • Clear, bright and non-reflective image due to AOS (Aspherical Optical System)
  • No light reflections, since the illumination beam and the observation path are separate
  • The instrument head fits precisely to the eye socket, blocking out ambient light
  • Very good refractive compensation due to 74 single step design on the non-continuous lens wheel (- 36 to + 38 D)
  • This prevents extreme jumps from one dioptre to another
  • Can be used for both dilated and non-dilated or particularly small pupils due to the pinhole aperture
  • 7 different apertures – can also be used with red-free filter



  2. Optimum illumination

  • Patented and exclusive continuous dimmability between 3 and 100%
  • No stray light thanks to the recessed, multi-coated viewing window
  • Helpful when examining cloudy lenses, as LED-HQ provides particularly bright illumination

  3. Exceptional durability

  • Maintenance-free use due to dustproof design
  • Impact-resistant due to a cast aluminium frame that the optical components are embedded in
  • No need to ever exchange the LED thanks to LED-HQ
  • 5-year guarantee

  4. Easy to use

  • Instrument can be operated with one hand
  • Flexibility during the examination due to the ergonomic design

  5. Flexible power source options

  • Rechargeable battery: with USB or table charger
  • Full functionality of the BETA 200S LED is guaranteed with the current BETA rechargeable handles and the EN 200 / EN 200-1 wall transformers.
•

  BETA 200 LED...

  HEINE BETA 200 LED Ophthalmoscope

  Ophthalmoscope with outstanding durability

  Accurate diagnosis at first glance. Direct ophthalmoscope with special optical system that provides a particularly clear and bright image of the fundus. Sturdy and handy – ideal for mobile use. 6 different apertures – always the right setting for different examination situations. Particularly bright and dimmable due to LED-HQ with virtually unlimited working life – no need to ever exchange the LED.

  1. Reliable diagnosis

  • Clear, bright and non-reflective image due to AOS (Aspherical Optical System)
  • No light reflections, since the illumination beam and the observation path are separate
  • The instrument head fits precisely to the eye socket, blocking out ambient light
  • Good refractive compensation due to 27 single step design on the non-continuous lens wheel (- 35 to + 40 D)
  • 6 different apertures – can also be used with red-free filter



  2. Optimum illumination

  • Patented and exclusive continuous dimmability between 3 and 100%
  • No stray light thanks to the recessed, multi-coated viewing window
  • Particularly bright due to LED-HQ

  3. Exceptional durability

  • Maintenance-free use due to dustproof design
  • Impact-resistant due to a cast aluminium frame that the optical components are embedded in
  • No need to ever exchange the LED thanks to LEDHQ
  • 5-year guarantee

  4. Easy to use

  • Instrument can be operated with one hand
  • Flexibility during the examination due to the ergonomic design

  5. Flexible power source options

  • Rechargeable battery: with USB or table charger
  • Full functionality of the BETA 200 LED is guaranteed with the current BETA rechargeable handles and the EN 200 / EN 200-1 wall transformers.
•

  K180 LED Ophthalmoscope

  HEINE K180 LED Ophthalmoscope

  Sturdy ophthalmoscope with low-reflection optics for reliable diagnosis. Bright, white light, for a clear image of the fundus. High functionality and good value for money.

  1. Reliable diagnosis

  • Low-reflection view due to spherical precision optics
  • Ambient light is blocked out thanks to the instrument head’s precise fit to the eye socket
  • Good refractive compensation due to 27 single step design on the non-continuous lens wheel (- 35 to + 40 D)

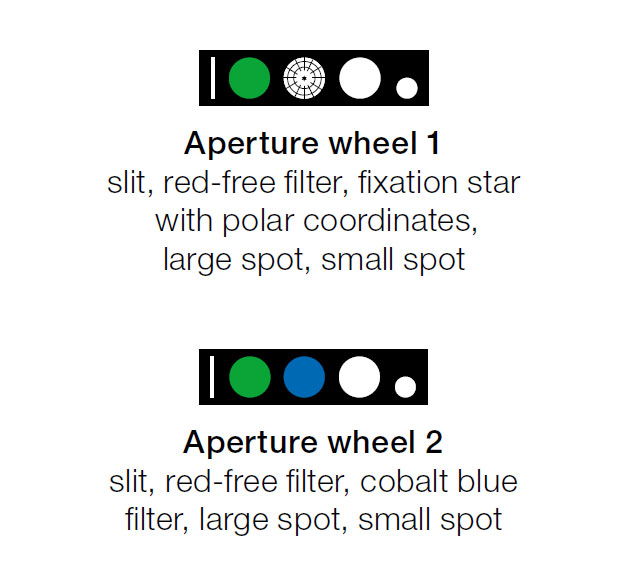

  • 5 different apertures in 2 variants



  2. Excellent illumination

  • Can be used for both dilated and non-dilated pupils
  • Particularly bright due to LED-HQ

  3. High durability

  • Dustproof, sturdy polycarbonate housing
  • 5-year guarantee

  4. Flexible power source options

  • Rechargeable battery: with USB or table charger
  • Replaceable batteries
•

  mini 3000 LED...

  HEINE mini 3000 LED Ophthalmoscope

  Maximum quality with minimum dimensions

  Modern pocket ophthalmoscope with LED-HQ. Concentrated, bright light for optimum illumination, a brilliant image and authentic colour rendering. Fixation star aperture with grey filter to reduce light intensity. Excellent optics and outstanding colour rendering with the smallest dimensions – perfect for when you’re out and about and on your rounds. Can be combined with the mini 3000 handle system. Available in black or blue.

  • Simple examination process possible without pupil dilation
  • Clear, high-resolution image with minimal reflections
  • 18 lenses ranging from - 20 to + 20 D prevent higher refractive errors
  • Fixation star including grey filter for patients who are sensitive to light

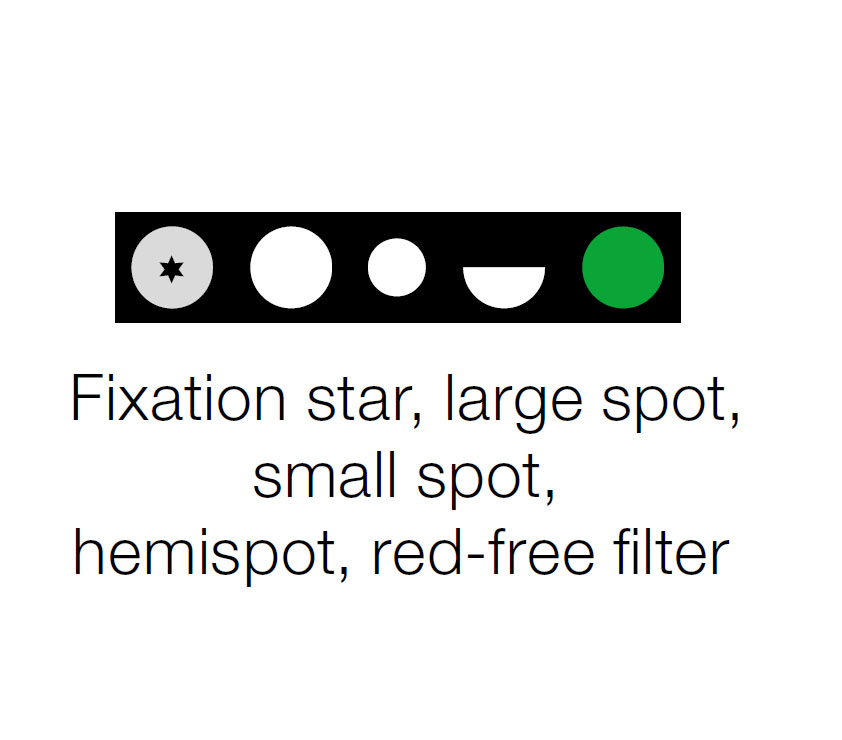

  • 5 different apertures
  • Switches off automatically as soon as it is clipped to the pocket
  • Practical one-finger operation
  • Handle and head are in 2 parts – for easy servicing and expandability
  • Rechargeable battery with mini NT table charger
  • Replaceable batteries
